灯光师1024控台 DGS-C1024
Ideal for stage performances and architectural lighting projects. Supports DMX512 protocol to precisely control multiple fixtures in sync, enabling complex lighting programming. Features a touchscreen interface and built-in program library for offline programming and online debugging—the essential tool for lighting designers to manage the entire show.
Certifications
Model:DGS-C1024

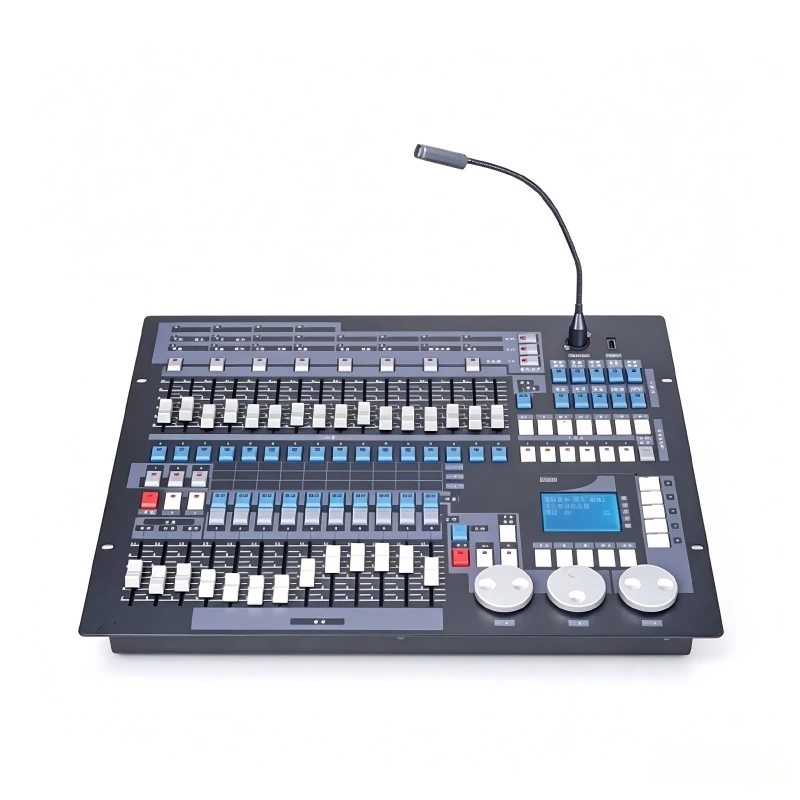

Lighting Technician 1024 Console DGS-C1024
DMX512/1990 standard with up to 1024 DMX control channels. Opto-isolated signal output, supporting up to 96 moving lights or 96 dimming zones using the Pearl light library.
Suggested Retail Price
¥3600.00/ unit
This price includes 13% VAT and shipping.
Configuration Selection
Technical Specifications
Product Advantages & Technical Highlights
Support for DMX512 protocol
Fully supports DMX512-1990 and RDM bidirectional communication protocols, compatible with all major lighting devices on the market for stable and reliable signal transmission.
HMI Programming Interface
Equipped with a high-definition color touchscreen for intuitive visual programming. Includes 200+ built-in lighting effect templates and supports importing/exporting programs via USB drive.
Multi-Output Control
Provides 4-channel, 8-channel, and 16-channel DMX outputs. Each channel controls up to 512 channels and supports cascading expansion for large-scale projects.
Offline and Online Modes
Supports offline operation and online editing via PC software. Built-in backup battery ensures data loss-free power-off; system automatically resumes upon power restoration.
Product Details
Built-in waveform generator with 135 preloaded waveforms for easy use.
Control the computer light's graphical trajectory, such as drawing circles, spirals, or colors.
Halo, Chase, and other effects. Graphical parameters (such as: Amplitude, Speed,
Spacing, wave shape, and direction can each be configured independently.
60 replay scenarios for storing multi-step and single-step scenes
Multi-step scenarios can store up to 600 steps.
Backlit LCD display with Chinese and English text
Power-off data retention
USB Backup and Upgrade
Professional gooseneck work light for indoor and outdoor performances.
Power: AC 90-240V/50-60Hz
Size: 485x420x105mm
Product specifications, images, and prices are for reference only and subject to change without notice. Please refer to the actual product.
