灯光师4096控台 DGS-C4096
Ideal for stage performances and architectural lighting projects. Supports DMX512 protocol to precisely control multiple fixtures in sync, enabling complex lighting programming. Features a touchscreen interface and built-in program library for offline programming and online debugging—the essential tool for lighting designers to manage the entire show.
Certifications
Model:DGS-C4096
Lighting Technician 4096 Console DGS-C4096
Powered by the robust Titan OS, featuring a dual-core Core processor, 128GB SSD, 4GB RAM, 8 DMX512 output ports, and 4096 channels.
Suggested Retail Price
¥9500.00/ unit
This price includes 13% VAT and shipping.
Configuration Selection
Technical Specifications
Product Advantages & Technical Highlights
Support for DMX512 protocol
Fully supports DMX512-1990 and RDM bidirectional communication protocols, compatible with all major lighting devices on the market for stable and reliable signal transmission.
HMI Programming Interface
Equipped with a high-definition color touchscreen for intuitive visual programming. Includes 200+ built-in lighting effect templates and supports importing/exporting programs via USB drive.
Multi-Output Control
Provides 4-channel, 8-channel, and 16-channel DMX outputs. Each channel controls up to 512 channels and supports cascading expansion for large-scale projects.
Offline and Online Modes
Supports offline operation and online editing via PC software. Built-in backup battery ensures data loss-free power-off; system automatically resumes upon power restoration.
Product Details
Core dual-core processor, 128GB SSD, 4GB RAM
8 DMX512 output ports, 4096 channels
Supports Artnet expansion up to 12 DMX512 output ports. Expanders are controlled via Ethernet, converting network signals to 512 signals to minimize signal loss. Additionally, a single Ethernet cable can reach the terminal to control lighting fixtures directly.
Built-in UPS for protection against unexpected power outages
10 macro keys, programmable for any application
20 Replay Sticks, supporting 1000 Virtual Replays
Powerful CMY or RGB color palettes.
Supports freehand naming
Supports CITP protocol; preview built-in content on servers or digital lights
Thousands of built-in light libraries with integrated library editing software
Built-in Visualiser stage simulation software with video support
Provides MIDI timecode control via MIDI remote playback buttons or faders.
Built-in pixel mapping and built-in graphics generator
Built-in Winamp music player triggers the program. Click to play music and watch the lights dance to the rhythm.
Schedule playback of recorded programs
Connects to mobile phones or tablets for handheld control
Net Weight: 14kg Gross Weight: 30kg
Product Dimensions: 68x43x15CM
Package Size: 7 8x53x32 CM
Product specifications, images, and prices are for reference only and subject to change without notice. Please refer to the actual product.
Customers also bought these products

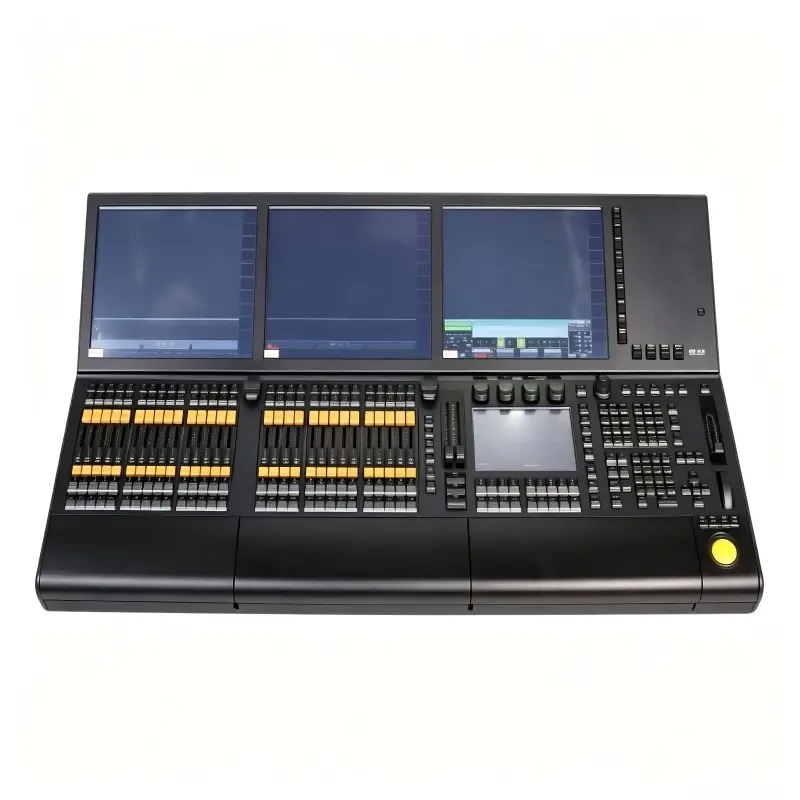

MA3 Full-Size System Edition
This industrial-grade, high-performance smart stage lighting console runs on Linux and features a Core i5 industrial motherboard. It includes professional control hardware such as multi-touch screens, motorized faders, encoders, and trackballs. The device supports DMX, ArtNet, and MA NET signal protocols, RDM bi-directional lighting control, massive channel expansion, and offline UPS backup power. Widely used in large-scale concerts, theaters, TV studios, variety shows, outdoor cultural tourism light shows, commercial celebrations, and bar performances, it enables precise lighting programming, playback, dimming, and multi-device synchronization. Designed for complex large-stage lighting schemes and real-time live operation, this console is the core control equipment for professional lighting designers working on major production projects and fixed installations in premium venues.
Suggested Retail Price

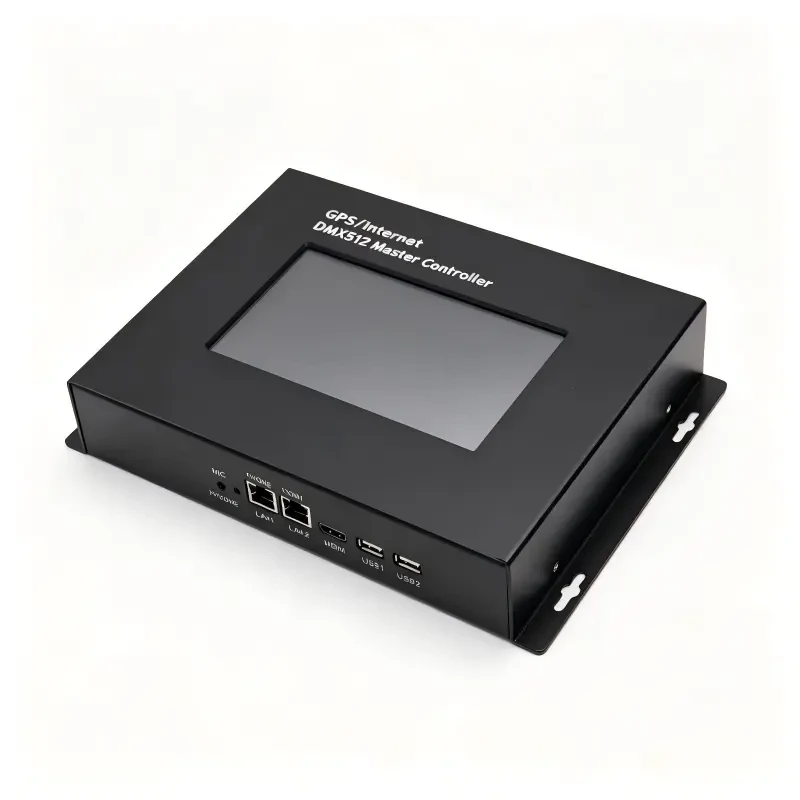

Embedded Cloud Controller for Cultural Tourism & Building Centralized Control DGS-C1000
The DGS-C1 000 Smart Video Sync Master, designed for lighting control, adapts to command monitoring centers, commercial advertising displays, stage performances, outdoor large screens, cultural tourism venues, and government/enterprise showrooms. Leveraging 4K HD decoding, high-precision BeiDou GPS timing, offline synchronization, multi-mode networking, and remote cloud control, it ensures stable HD LED playback, precise time synchronization, unattended intelligent management, and multi-system centralized control—meeting both routine operations and emergency support requirements for major events.
Suggested Retail Price

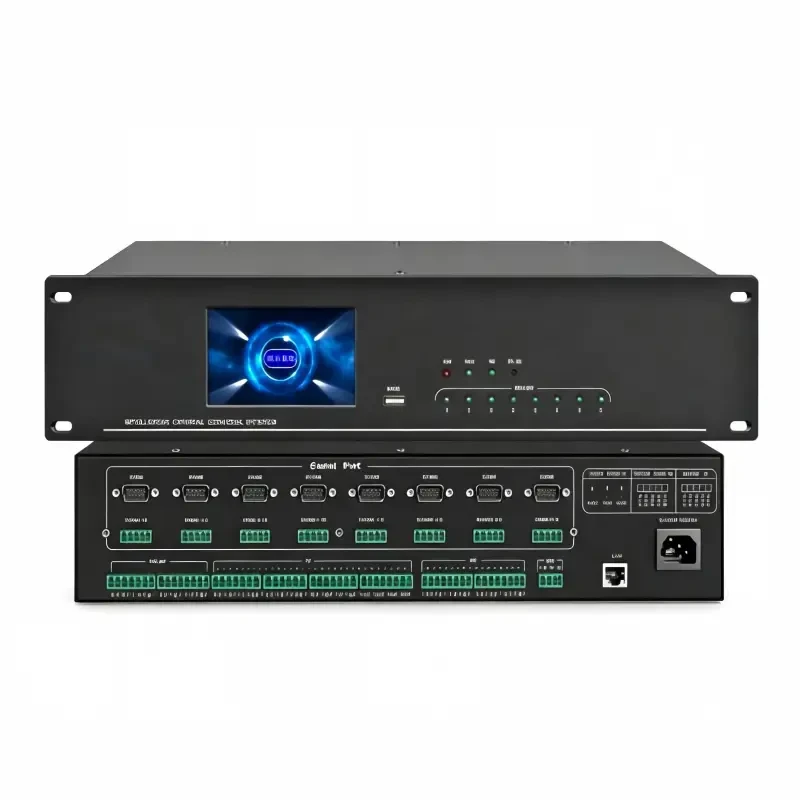

Programmable Smart Host DGS-C8788
