High-Power Waterproof Laser Light - IK Lights

大功率防水激光灯

Perfect for KTVs, nightclubs, music festivals, celebrations, and other entertainment venues to create dazzling light effects and energize the atmosphere. Features multiple built-in preset programs and sound-activated modes that automatically sync with music rhythms for an immersive entertainment experience.

Certifications

Genuine Original
3-year warranty
CMA Certification
ISO9001 Certification
RoHS Certification
CNAS Accredited
ISO 14001 Certification
CE Certification

Model:AK-L200-IP

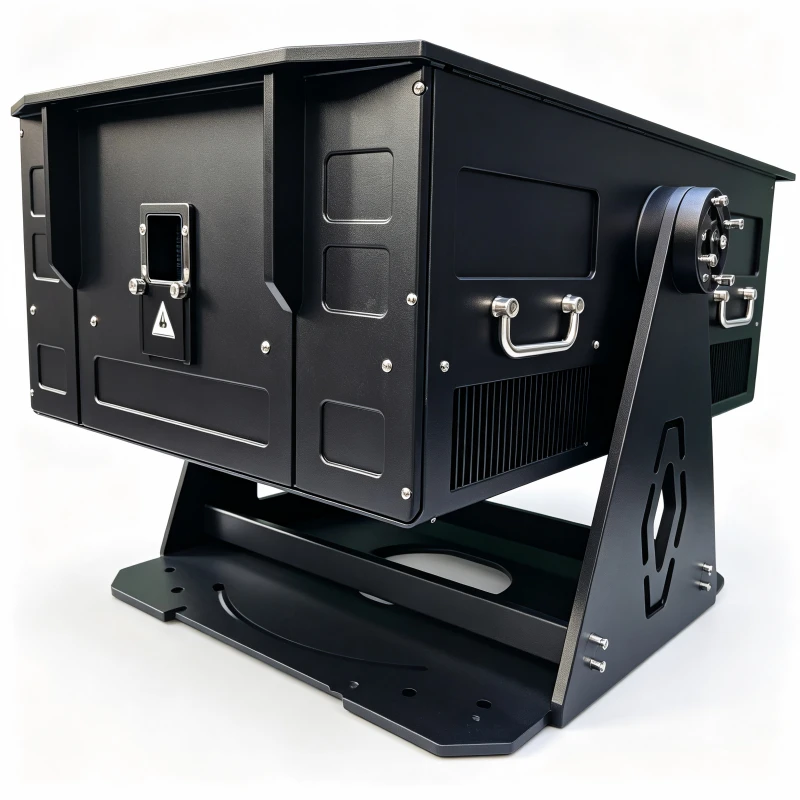

High-Power Waterproof Laser Light

The high-power outdoor laser projector delivers exceptional brightness, long-range projection, and weather-resistant durability for stunning visual effects. Ideal for cultural tourism night tours, city landmark illumination, large-scale outdoor performances, commercial light shows, water screen laser displays, theme park lighting projects, grand celebrations, outdoor advertising projections, stadium event lighting, and viral nighttime ambiance creation, it is the core professional lighting solution for major outdoor visual engineering, commercial events, and urban nightscape upgrades.

In Stock|Lead Time:7-15 days

Suggested Retail Price

¥7800.00/ unit

This price includes 13% VAT and shipping.

Configuration Selection

Technical Specifications

Product Name:High-Power Waterproof Laser Light
Product Model:AK-L200-IP
Input Voltage:AC0-240V
Rated Power:10W
Light Source Type:Laser
Product Color Temperature:RGB
Beam Angle:20°
Control Mode:DMX512
Housing Material:Aluminum
Ingress Protection Rating:IP65
Chassis Color:Black
Delivery Time:7-15 days
Factory Warranty:3 years

Product Advantages & Technical Highlights

High-Power Laser Source

200-50 0mW Green/Blue Laser Module, Effective Projection Range: 500-5000 Meters, Stunning Outdoor Sky Beam Effect

Galvanometer Scanning System

High-speed galvanometer scanning with animation and text projection support; refresh rate ≥ 30 kHz for smooth, flicker-free display.

IP65 Protection Design

All-sealed aluminum alloy housing with independent optical cavity design; dustproof, waterproof, and corrosion-resistant for harsh outdoor environments.

Multi-layered security protection

Built-in photosensor automatically detects obstructions and cuts off laser output, compliant with IEC 60825-1 laser safety standards.

DMX512 Control

Supports ILDA, FB4 standards and DMX512 protocol; syncs with media servers for complex laser show programming.

Estimated Quantity *

Tai

Enter the estimated purchase quantity so we can provide you with a more accurate quote.

Share to social media

Product Details

Total Laser Power (200W)
Red: 638nm/50W ±10% Mitsubishi Laser Diode (Imported from Japan)
Green: 525nm/60W±10% Nichia Laser Diode (Imported from Japan)
Blue: 455nm/90W ±10% Nichia Laser Diode (Imported from Japan)
Spot size at the output port: ~10 × 14 mm
Divergence: < 1.2 mrad
Modulation Type: Analog (0–30Khz)
Cooling Method: TEC Cooling / Air Cooling
Operating Mode: CW
Power Stability: <10%
Preheat time: 5 minutes
Polarization Direction: Horizontal + Vertical
Light Source Lifespan: 10,000 hours
Scanning System: High-Speed Closed-Loop Optical Scanning Large-Size X-Y Galvanometer
Galvanometer Lens Size X: 20*20*1.2mm Y: 18*25*1.2mm
Galvanometer mirror reflectivity: >99% @ 45° incidence (wavelength range: 400 nm–680 nm)
Galvo scan speed: 20K PPS@7°
Galvanometer Scan Angle: ±20º
Control System: Pangolin FB4
Control Mode: Auto, DMX512 (16/39CH), Pangolin Quicshow PC Software (Free) or Beyond (Paid)
Power Consumption: 1,800W
Operating Voltage: AC90-230V 50/60Hz
IP Rating: IP65
Operating Temperature Range: 20°C — 45°C
Storage Temperature Range: -40˚ to +60˚C (-40˚F to 140˚F)
Unit Dimensions: 630*855*475MM (including base)
Net Weight: 100 KG
Lighting Packaging: Flight Case
Packaging Accessories: 1 manual(s)
Standard Power Cord: 1 pcs

Product specifications, images, and prices are for reference only and subject to change without notice. Please refer to the actual product.

Customer Reviews

Log in to leave a review, share your experience, and extend your warranty by 1 year(s).

Sign In
Wu**|138****0136|Jiujiang **** **** **|China
Certified and purchased

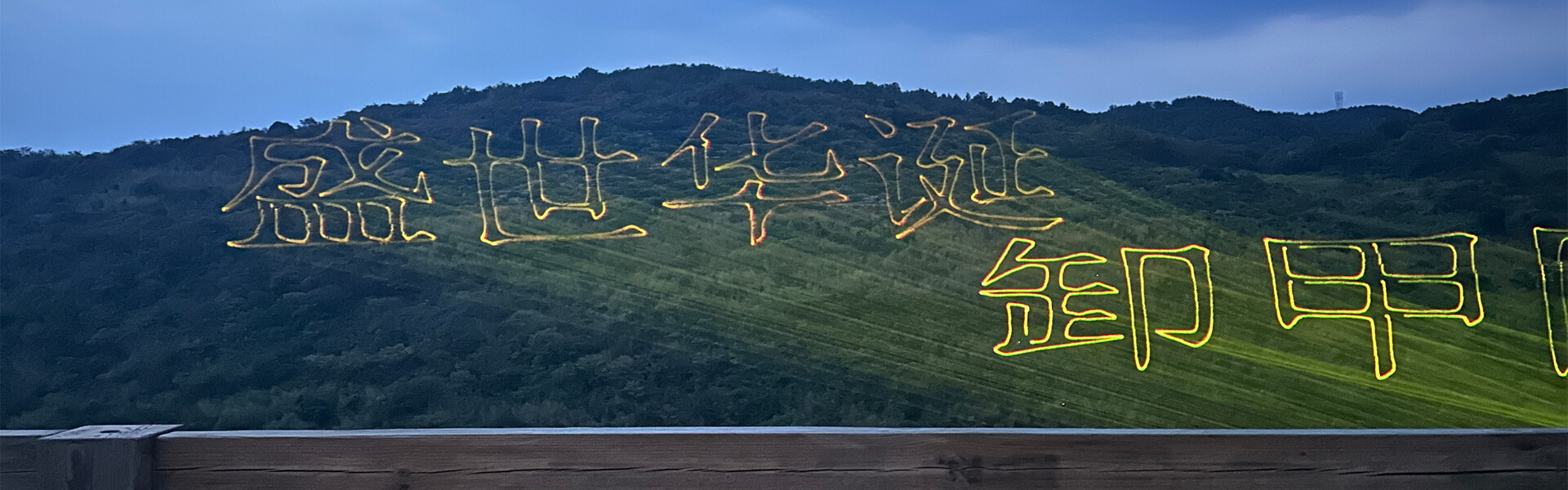

Installed 4 units of 120W lasers at Xiejiaping Scenic Area in Jingzhou, Hubei, projecting onto a mountainside 1500 meters away. iKEE technicians were highly professional and provided full installation guidance. Given the client's high standards for lighting effects, we spent two sleepless nights on programming. The client is extremely satisfied and has awarded five stars!
